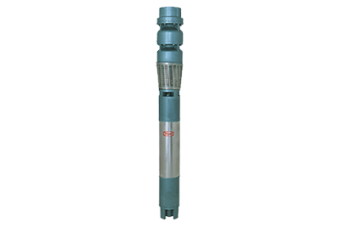

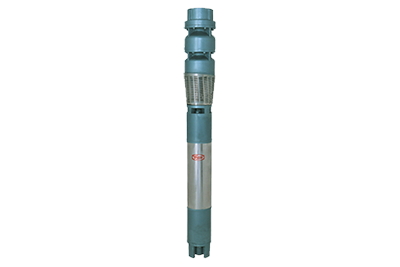

Super discharge pump for low depth with economical and trouble free 6” motor reduces the cost of ownership. Most suitable for low depth borewells with high yield
APPLICATION
- Agricultural irrigation
- Industrial Water supply
- Rural water Supply
- Mine dewatering
- Sprinkler and drip irrigation systems
FEATURES
- Heavy duty motor to withstand wide voltage fluctuations
- High efficient motor
- Standardized parts. Easily interchangeable.
- Precision , well lubricated bush and thrust bearings
- Water cooled rewindable motor
- Stainless Steel Impellers
- Dynamically balanced rotating parts ensures minimum vibrations and ensures longer life
- Designed for easy maintenance
SPECIFICATIONS
| Motor power | 7.5 to 20hp |
| Speed | 2900 RPM |
| Power source | 415 Volts, 3 phase , 50Hz power supply |
| Maximum outer dia | 175 mm |
| Type of duty | S₁ (Continuous) |
| Winding type | Wet type (rewindable) |
| Starting Method | 7.5hp – Direct On line 10hp and above- star delta |
| Pump Type | Mixed Flow |
| Maximum Head | 265 feet |
| Maximum Discharge | 1450 LPM |
Download Performance Chart
