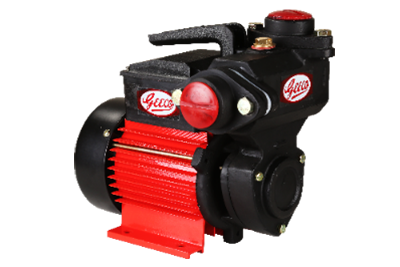

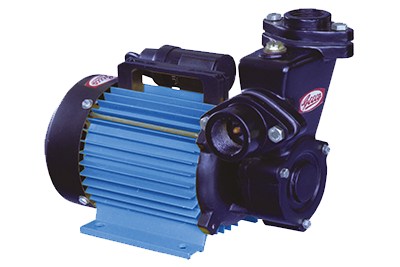

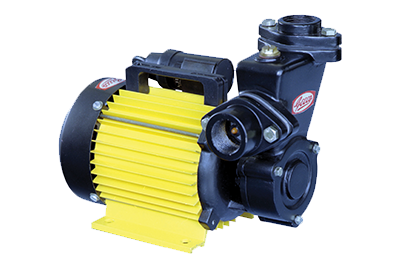

Light weight, portable, superior performance self priming pumps . Available in Four models – LITTLE KING , LITTLE KING PLUS, SMART & HERO Every model has its own unique features with inbuilt Thermal protector.
APPLICATIONS
- Domestic water supply
- Garden irrigation
- Pressure booting application
- Small buildings
- Small Cooling tower applications
FEATURES
- 2 Pole (2900RPM) Compact Motor
- Brass forged impellers for rust free long life
- Flange type Suction and delivery for easy maintenance
- Wide voltage range 140 to 250 Volts
- Very low power consumption
- 2 Pole CSCR Motor for trouble free service
- Very low noise levels
- Aluminium powder coated motor body
SPECIFICATIONS
| Motor Power | 0.5hp & 1hp |
| Power supply | AC 230 Volts 50Hz Single phase power supply |
| Pipe size | Sucton 1 inch x Delivery 1” |
| Max total head | 120 feet (36 meters) |
| Discharge | Up to 55 LPM |
| Rating | S₁ rating ( continuous) |
Download Performance Chart
